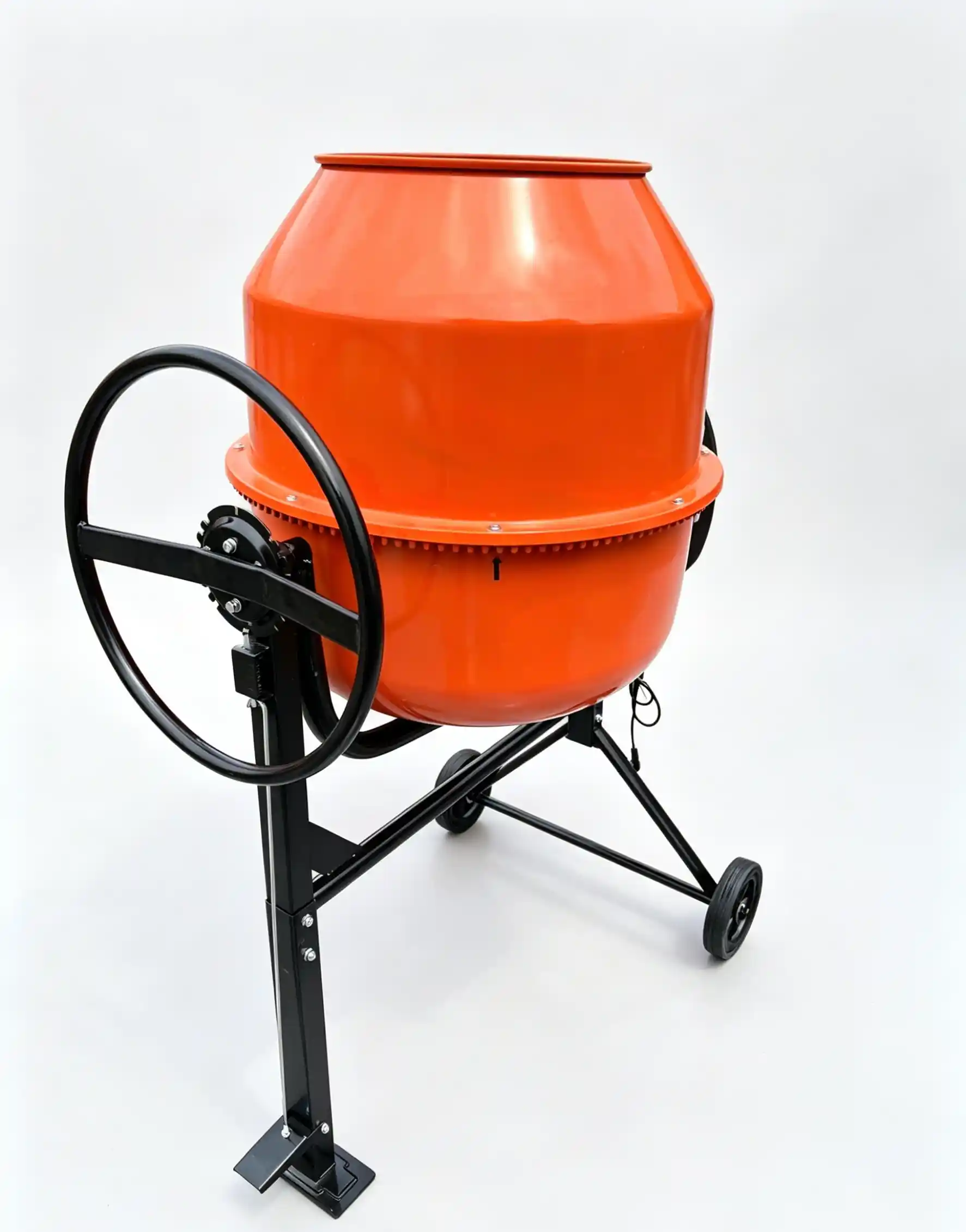

Electric Concrete Mixer

The instruction of Electric Concrete Mixer

The JOINTSEN Electric Concrete Mixer is high-efficiency, durable, and easy-to-move equipment designed for small-to-medium construction projects, DIY building, and farm renovations. Powered by a robust 220V electric motor, this series delivers fast and uniform mixing for concrete, mortar, plaster, and stucco. Featuring a heavy-duty steel drum, reinforced frame, and smooth-rolling wheels, it ensures excellent stability and long service life even on tough job sites.

The main characteristics of Electric Concrete Mixer

● High Efficiency & Strong Power: Equipped with a reliable copper-wire electric motor (450W–1100W) for fast and uniform mixing.

● Heavy-Duty Steel Construction: Built with high-strength steel drum walls (up to 1.8mm thickness) and a powder-coated steel frame for max durability and rust resistance.

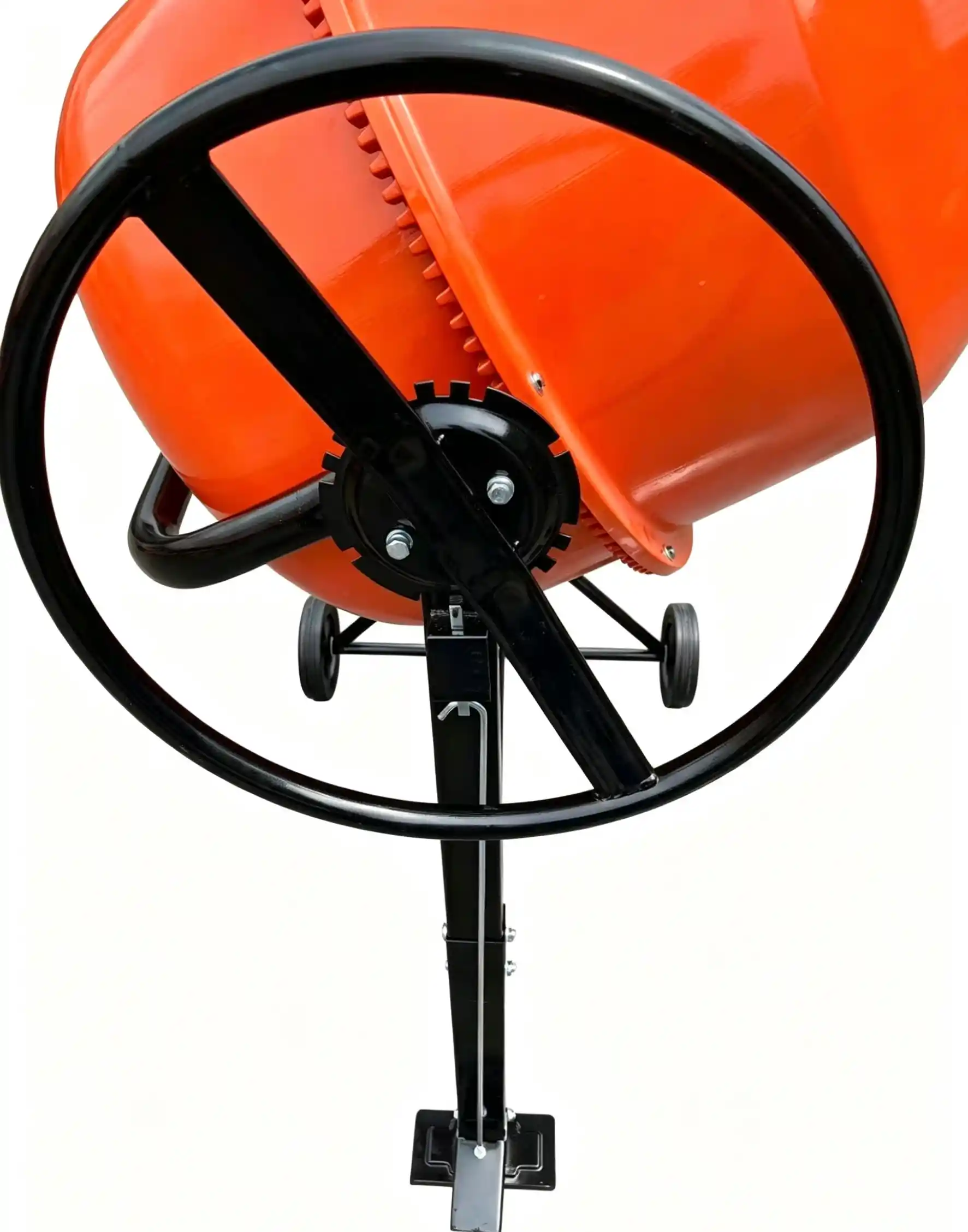

● Ergonomic Tipping Wheel: Designed with a large manual handwheel and safety lock mechanism for precise, effortless pouring and dumping.

● Portable Design: Fitted with sturdy, wear-resistant wheels and front support legs, allowing easy maneuverability around job sites.

● Available in multiple size options to effortlessly meet the needs of different working environments.

The parameter of Electric Concrete Mixer

Model	Motor Power	Max Inner Diameter x Drum Depth	Drum Thickness (mm)
CM120	220V/50Hz	450WØ500mm x 590mm	1.2 / 1.5
CM140	220V/50Hz	550WØ550mm x 580mm	1.2 / 1.5
CM160	220V/50Hz	550WØ550mm x 650mm	1.2 / 1.5
CM180	220V/50Hz	650WØ600mm x 610mm	1.2 / 1.8
CM200	220V/50Hz	850WØ600mm x 655mm	1.2 / 1.8
CM222	220V/50Hz	850WØ630mm x 670mm	1.2 / 1.8
CM240	220V/50Hz	850WØ630mm x 710mm	1.2 / 1.8
CM260	220V/50Hz	1100WØ630mm x 750mm	1.2 / 1.8
