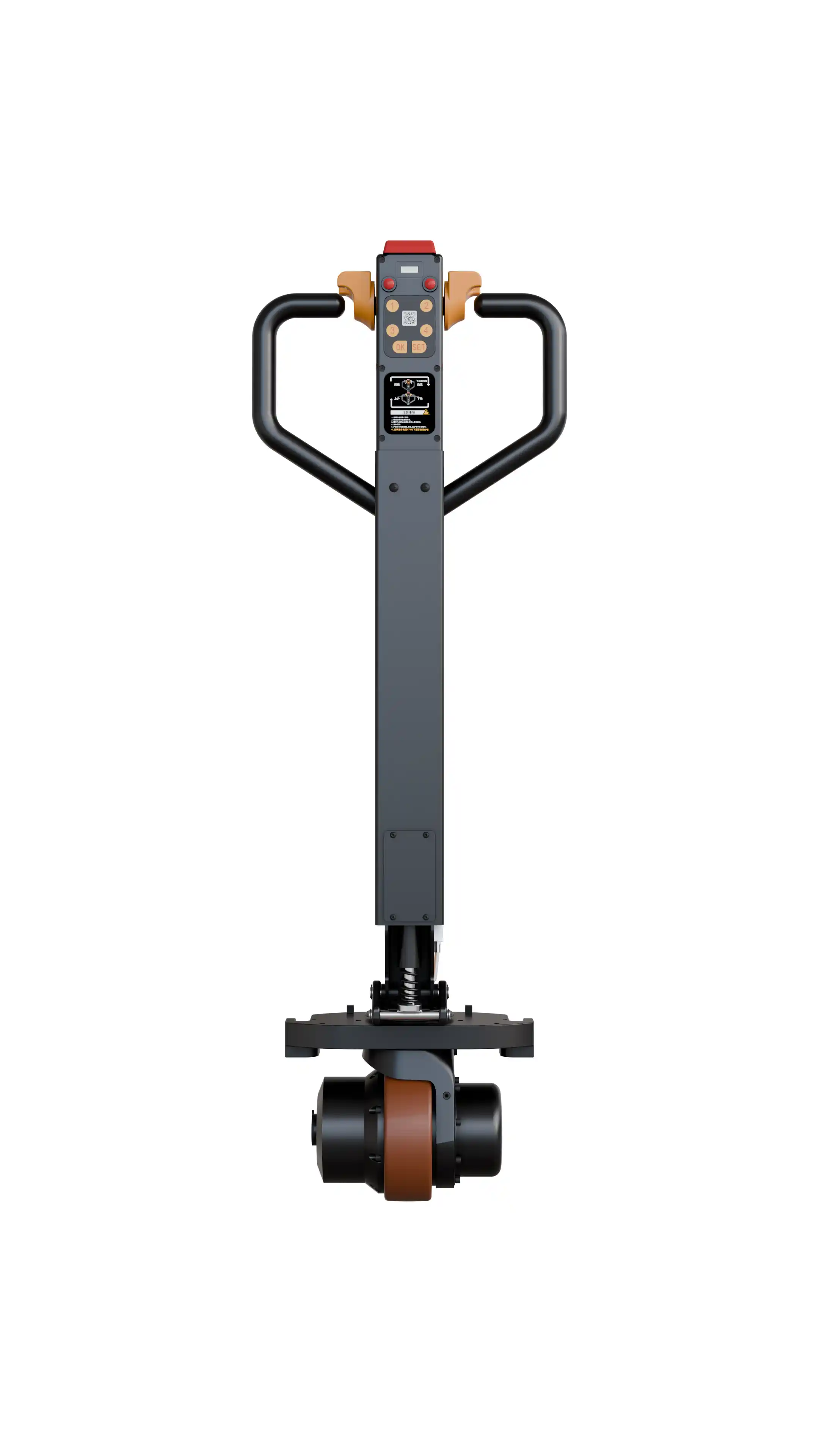

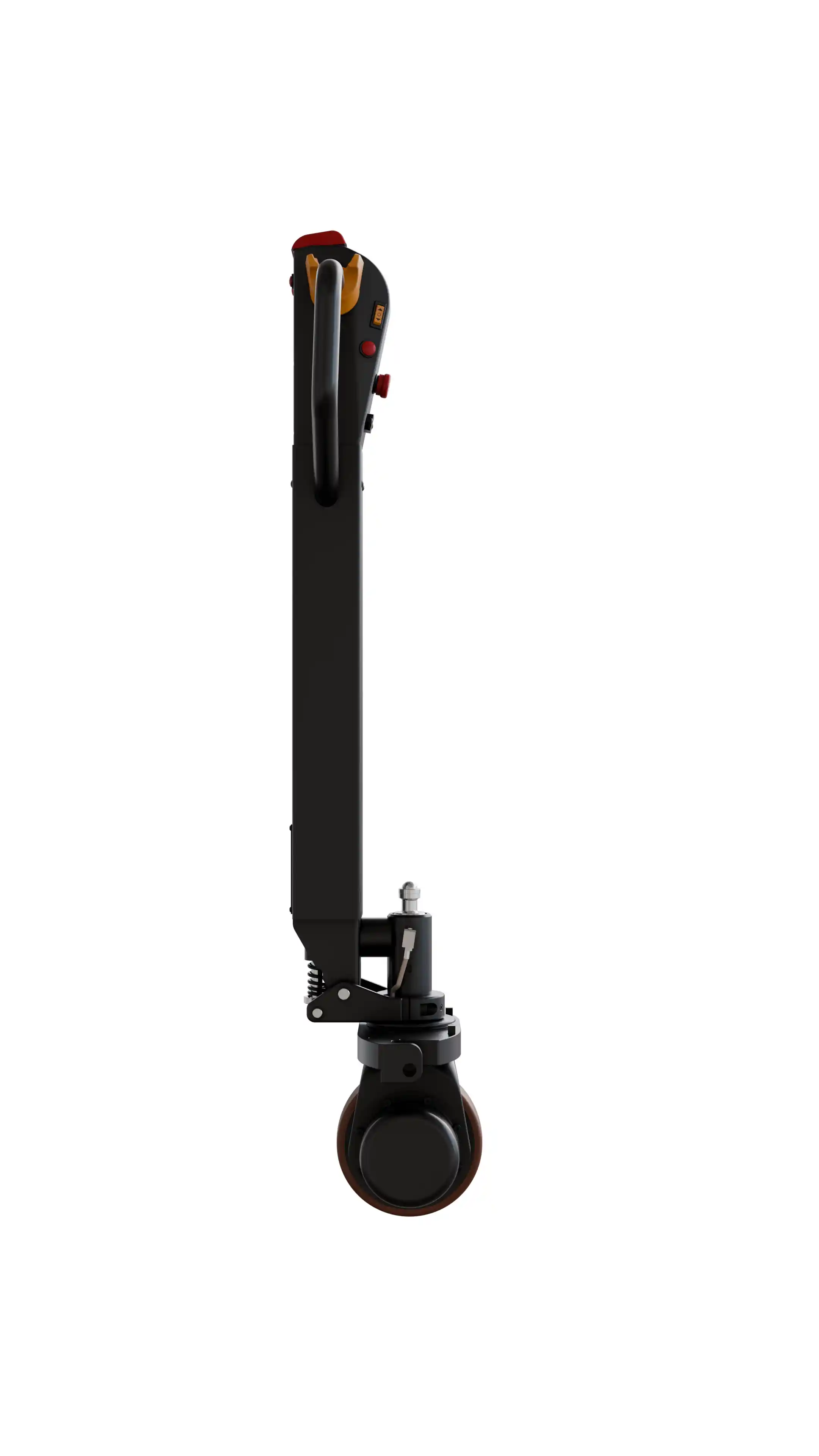

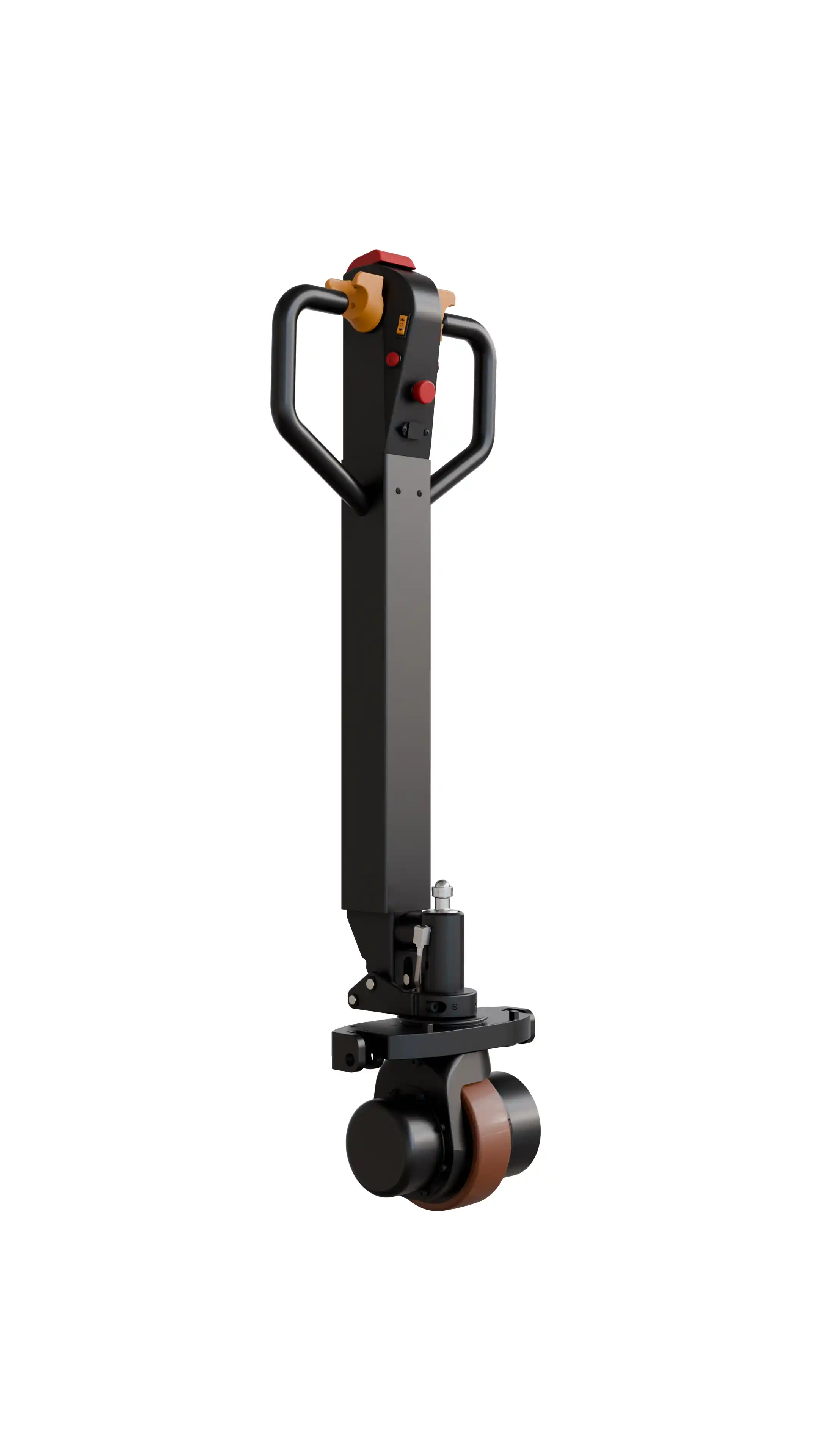

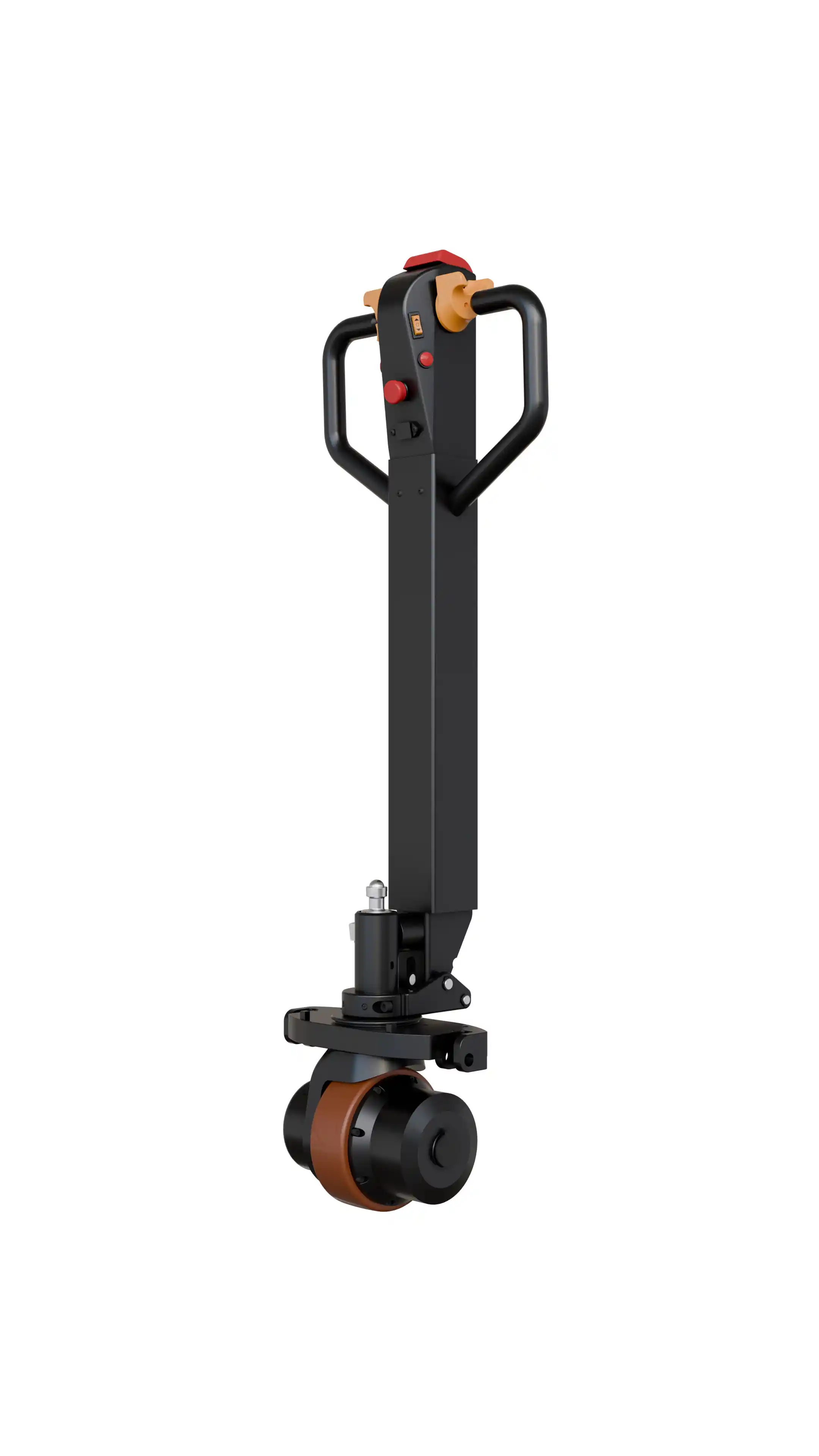

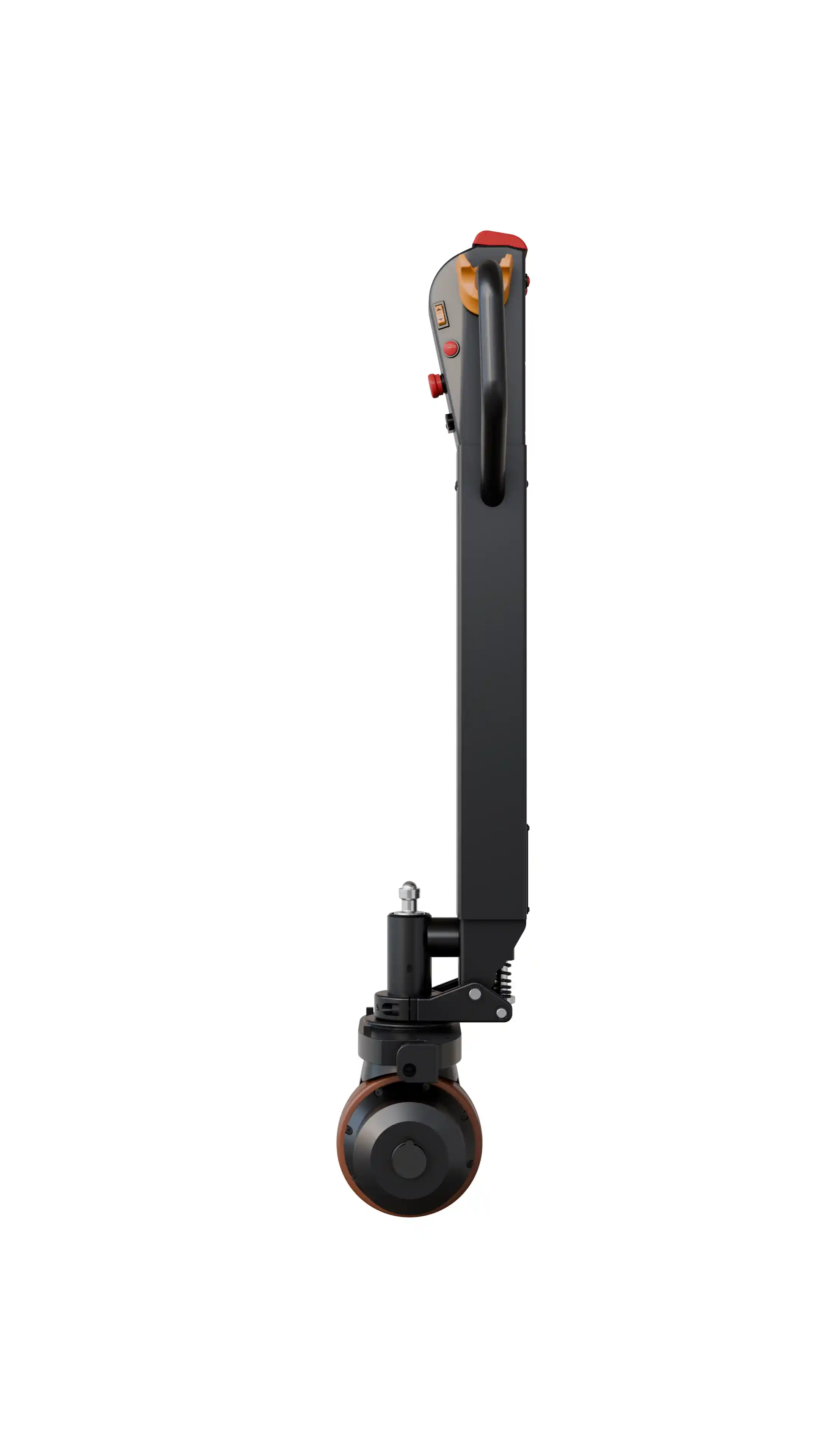

Electric Integrated Drive Rod

The Instruction of Electric Integrated Drive Rod

The Jointsen Gen 4 Electric Conversion Kit for manual pallet jack (Integrated Drive Rod) is engineered to seamlessly convert standard manual pallet trucks into fully electric pallet truck. By simply replacing the original manual hydraulic pump handle with our all-in-one Pallet Jack Electric Conversion Kit, your manual pallet jack is instantly upgraded to a fully electric pallet truck—eliminating heavy manual pulling, maximizing warehouse productivity, and slashing operator fatigue.

The Main Characteristics of Electric Integrated Drive Rod

● High Load Capacity Powerful Drive: Built to effortlessly power hand pallet trucks with heavy loads up to 2000 kg, powered by an efficient 1000W brushless permanent magnet motor that ensures low noise, long service life, and maintenance-free reliability.
● Compact All-in-One Integration: Combines steering, propulsion, braking, and hydraulic lifting into a single, highly integrated module—reducing overall equipment weight (Self Weight: only 41 kg) while maximizing power output.
● Advanced Lithium-Ion Technology: Powered by a high-density 48V / 10Ah Lithium-ion battery, supporting fast charging, extended operational runtime, and constant power delivery.
● Broad Compatibility (AC & BF Chassis): Specially engineered to seamlessly fit standard AC or BF type pallet truck chassis, making it an ideal plug-and-play solution for both OEMs and retrofit projects.

The Parameter of Electric Integrated Drive Rod

Maximum Load:	2000kg
Battery:	Lithium-ion Battery 48V/10Ah
Moter	1000w brushless permanent magnet Integrated driverod motor
Climbing Ability:	6°
Cylinder Lifting Height:	110-115mm
Self Weight:	41kg
Compatible Chassis:	AC or BF Type Chassis
