Product Description

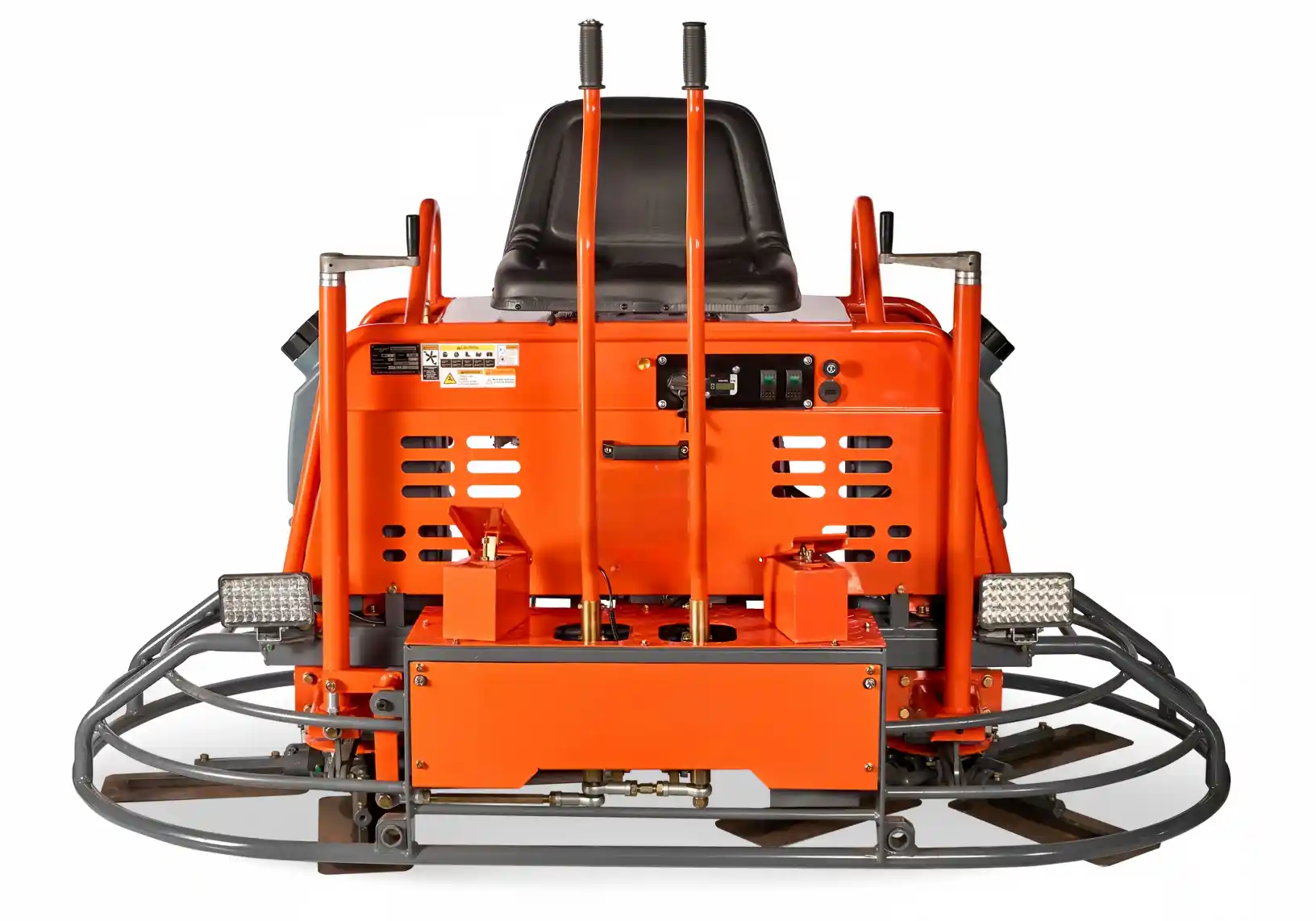

The instruction of JS836N Ride-on Power Trowel

JS836N Ride-on Power Trowel provides relentless torque and maximum reliability under heavy continuous loads. Weighing in at a substantial 350kg, it offers enhanced downward force to securely compact aggregate and seal concrete surfaces. Equipped with dual 940mm rotors and a premium 8-blade configuration, the JS-836N uses wider, heavy-duty blades (355*195*2.0mm) to guarantee smooth, flawless, and highly dense mirror finishes in a fraction of the time.

The main characteristics of JS836N Ride-on Power Trowel

● Driven by the genuine 25HP Honda GX690 engine, offering smooth twin-cylinder power delivery, exceptional fuel efficiency, and the long-term durability demanded by professional contractors.

● Features specialized 355*195*2.0mm blades. The increased blade width (195mm) provides a larger surface contact area per blade, optimizing flatwork panning, leveling, and burnishing.

● The robust, heavy-duty frame provides 350kg of total mass, applying excellent downward pressure across the slab to seal pores, close micro-cracks, and increase the concrete floor’s durability.

● The 8-blade layout (4 blades per 940mm rotor) spinning at a continuous 160 rpm allows for massive surface coverage per pass, dramatically cutting down labor hours on big jobs.

● The machine comes equipped with dual, ultra-bright LED headlights on the front guard frame. This allows for safe, high-visibility operations during early morning or late-night pours.

● Designed with responsive dual steering levers, a comfortable high-back seat, and easily accessible pitch control cranks, giving the operator pinpoint control with minimal physical exertion.

The parameter of JS836N Ride-on Power Trowel

Engine:	Honda GX690
Power:	Power: 25hp
Blades quantity:	8pcs
Trowel disc size:	940mm
Disc speed:	160rpm
Blade size:	3551952.0mm
N.W.:	350kg
Overall dimension:	197010001260mm
