Product Description

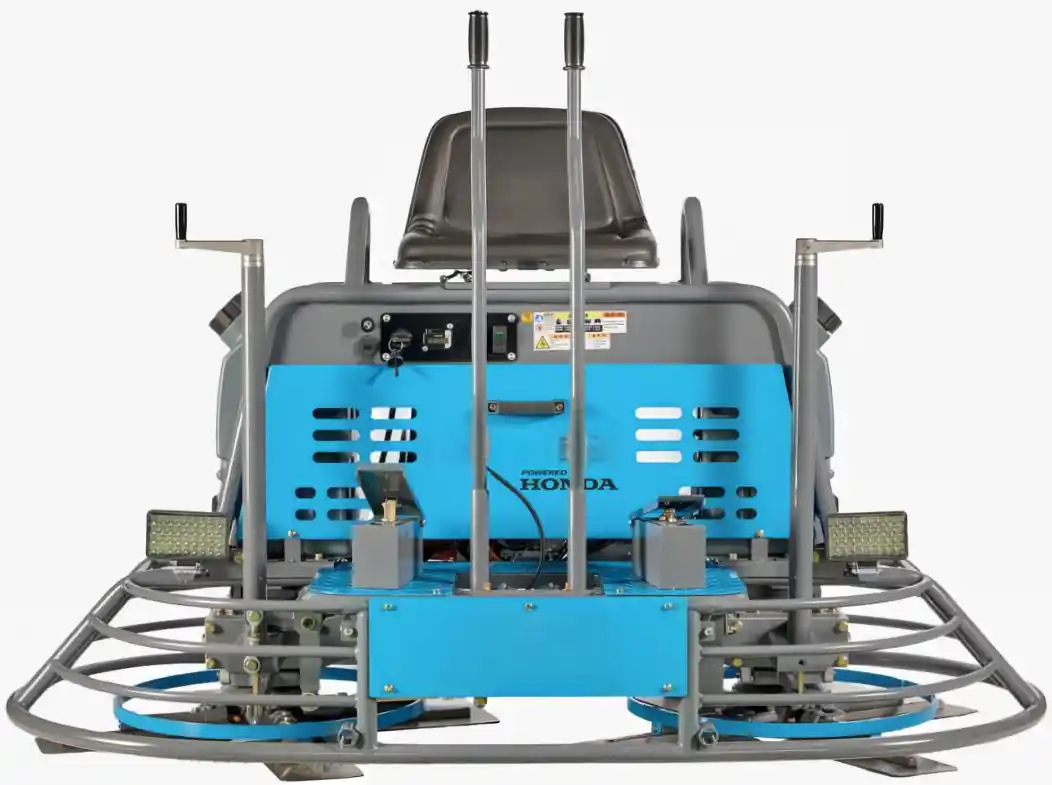

The instruction of JS836S Ride-on Power Trowel

The JS836S Ride-on Power Trowel is a massive 25HP Honda GX690 engine, providing relentless torque and reliability. Featuring dual 940mm trowel discs and an 8-blade configuration, it offers a massive sweeping path that allows contractors to achieve super-flat floors and glass-like finishes in a fraction of the time it takes with walk-behind units.

The main characteristics of JS836S Ride-on Power Trowel

● Powered by the industry-leading 25HP Honda GX690 engine. This twin-cylinder powerhouse guarantees high torque, smooth operation, and exceptional reliability during continuous, heavy-duty use.

● Dual 940mm rotors equipped with a total of 8 blades (4 per rotor) provide an expansive working width.

● A fixed disc speed of 160 rpm ensures rapid, uniform coverage and generates the friction necessary to produce a tightly sealed, high-gloss surface.

● With a robust net weight of 320kg, the JS836S applies consistent, heavy downward pressure across both rotors, effectively pushing down aggregate and bringing the paste to the surface for superior density.

● Comes equipped with standard 350 x 145 x 2.0 mm trowel blades, crafted from high-carbon steel for maximum durability and precise concrete leveling.

● The meticulously engineered chassis (1970 x 995 x 1290 mm) provides a low center of gravity for excellent stability, while the intuitive steering system offers pinpoint maneuverability around obstacles

The parameter of JS836S Ride-on Power Trowel

Engine:	Honda GX690
Power:	25hp
Blades quantity:	8pcs
Trowel disc size:	940mm
Disc speed:	160rpm
Blade size:	3501452.0mm
N.W.:	320kg
Overall dimension:	19709951290mm
