Tilting Drum Concrete Mixer with Hopper

500L Heavy-Duty Diesel Concrete Mixer with Loading Hopper (4 Models Available) Engineered for medium-to-large construction sites, this high-efficiency diesel mixer delivers an output of 8–10 m³/h (500L drum / 400L mix) with reliable chain drive and heavy-duty pneumatic tires. Powered by robust air-cooled (10HP) or water-cooled (16HP) diesel engines, we offer 4 tailored configurations to match your exact jobsite requirements:

Send Inquiry

Product Description

The Instruction of Tilting Drum Concrete Mixer with Hopper

500L Heavy-Duty Diesel Concrete Mixer with Loading Hopper (4 Models Available)

Engineered for medium-to-large construction sites, this high-efficiency diesel mixer delivers an output of 8–10 m³/h (500L drum / 400L mix) with reliable chain drive and heavy-duty pneumatic tires. Powered by robust air-cooled (10HP) or water-cooled (16HP) diesel engines, we offer 4 tailored configurations to match your exact jobsite requirements.

The Main Characteristics of Tilting Drum Concrete Mixer with Hopper

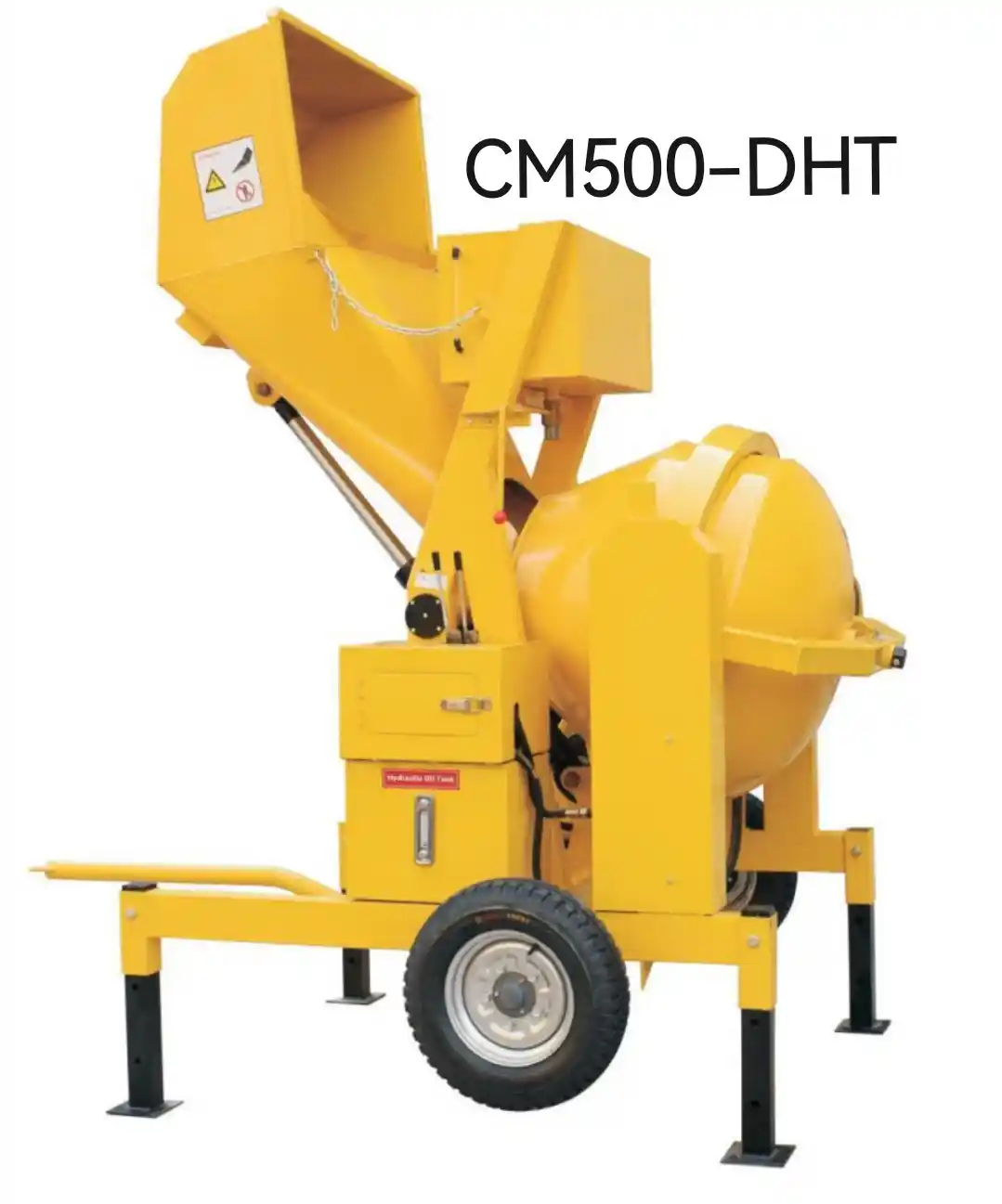

CM500-DHT (Hydraulic Tipping Hopper with Legs): Features a hydraulic tipping hopper for smooth, automated material loading and heavy-duty stabilizing support legs.

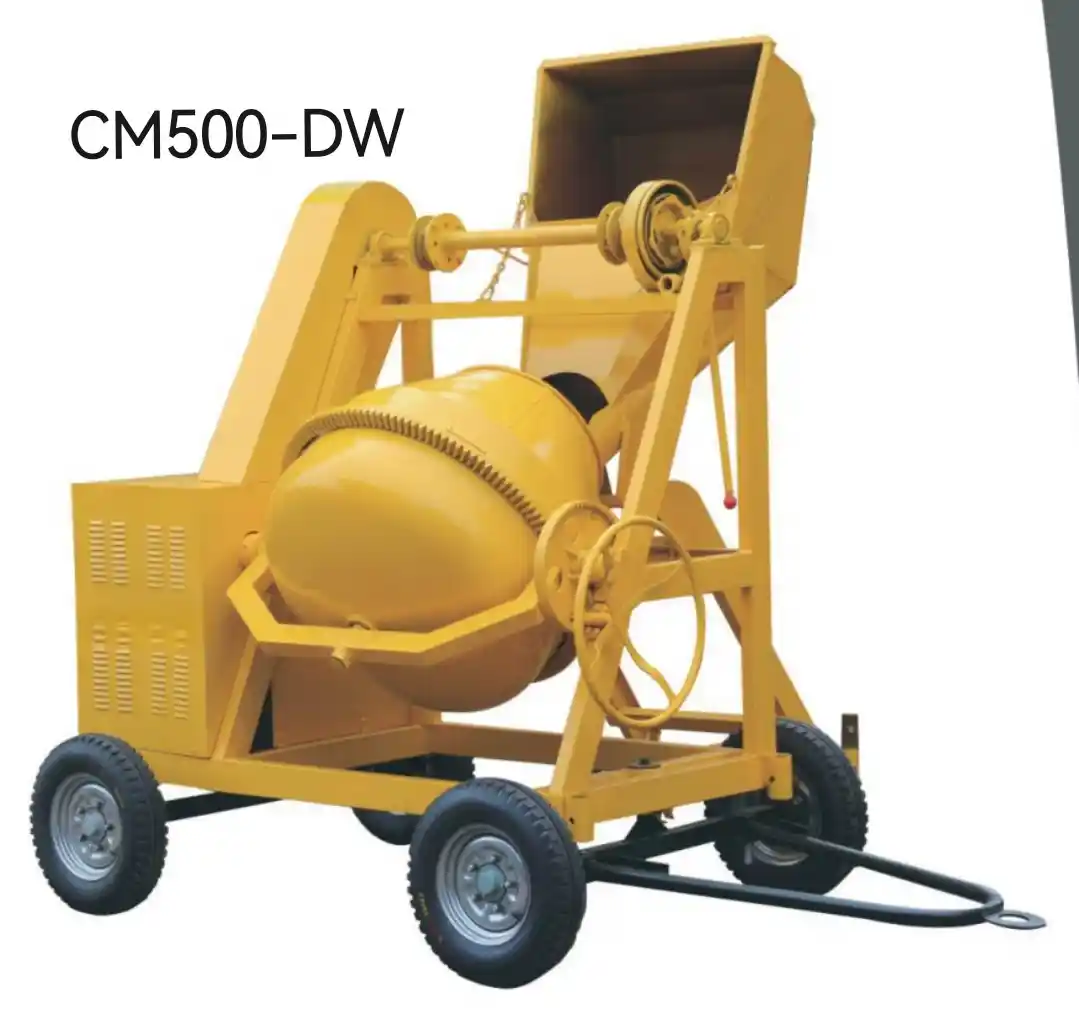

CM500-DW (Mechanical Hoist with 2 Wheels): Utilizes a traditional wire-rope mechanical hoist system with a compact 2-wheel mobile chassis.

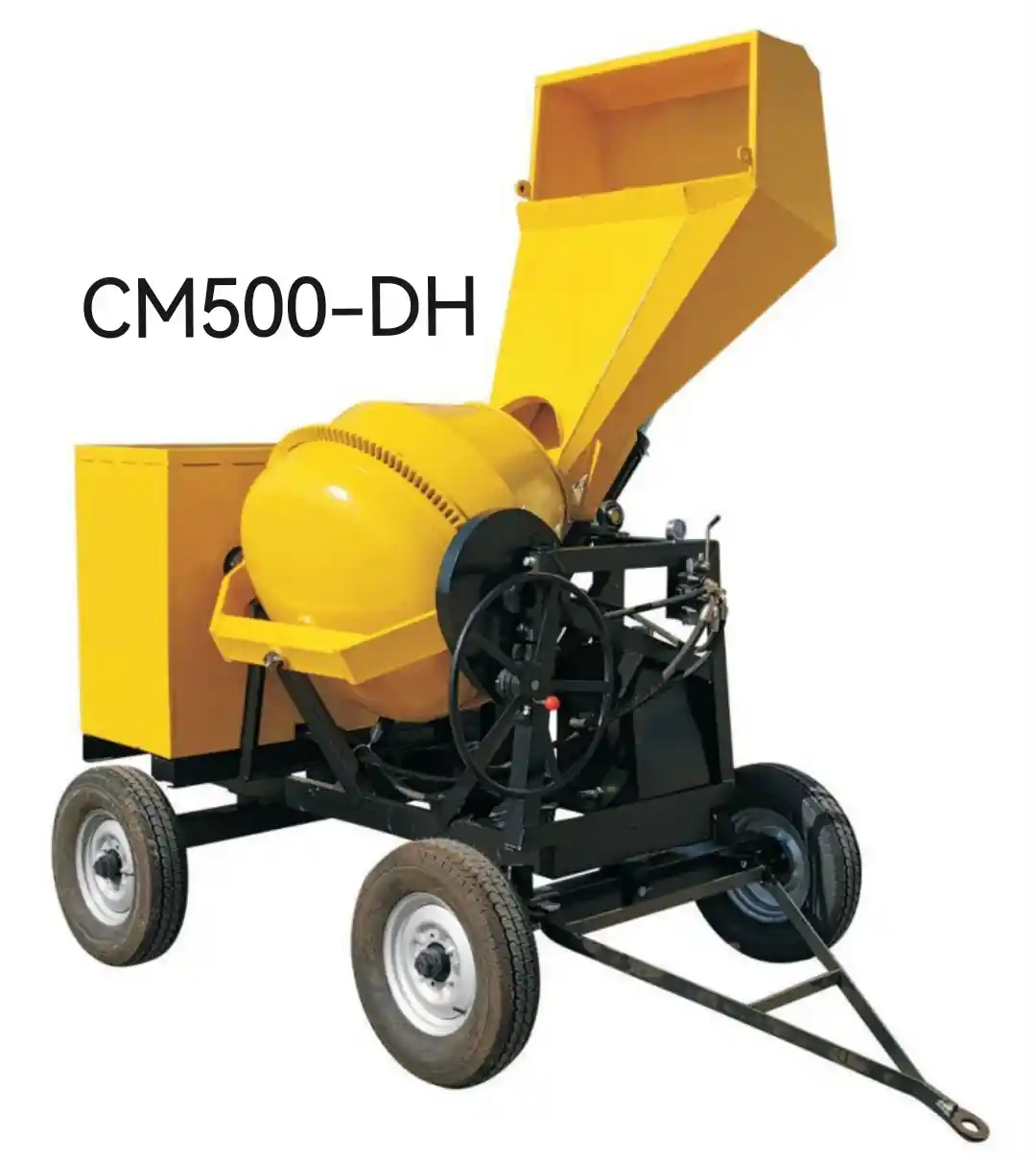

CM500-DH (Hydraulic Hoist with 4 Wheels): Combines hydraulic lifting power with a robust 4-wheel towing chassis for superior site maneuverability.

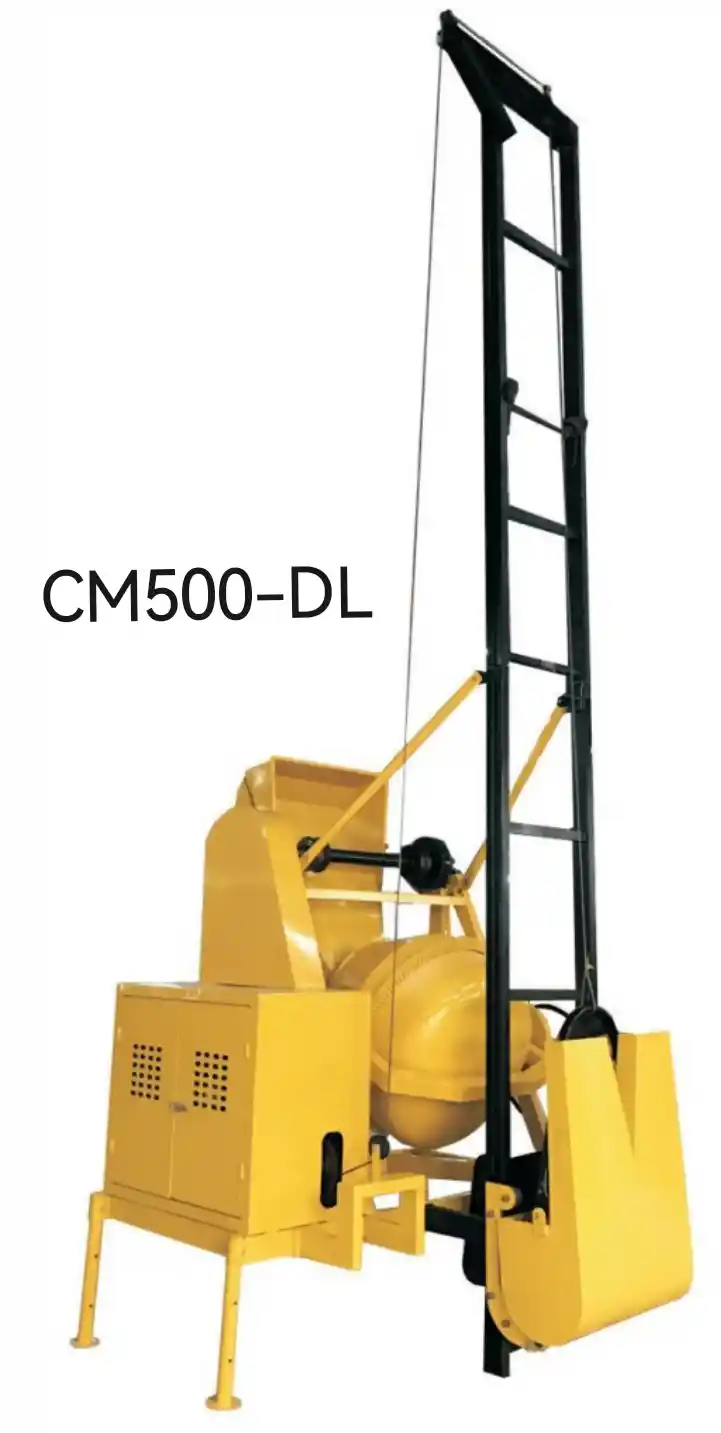

CM500-DL (Vertical Mast Lifting Bucket): Equipped with a specialized vertical ladder/mast guide and a 200L lifting bucket, achieving a rated lifting height of up to 12m (with ladder) or 24m (without ladder) for elevated pouring.

The Parameter of Tilting Drum Concrete Mixer with Hopper


Model CM500-DHT DM500-DW CM500-DH CM500-DL
Drum Capacity 500L 500L 500L 500L
Mixing Capacity 400L 400L 400L 400L
Water Tank Capacity 60L 60L 60L 200L
Productivity 8-10 m³/h 8-10 m³/h 8-10 m³/h 8-10 m³/h
Bags of Cement per Batch 1.5 Bag Cement 1.5 Bag Cement 1.5 Bag Cement 1.5 Bag Cement
Drum Rotation Speed 20-22 RPM 20-22 RPM 20-22 RPM 20-22 RPM
Mixing Drum Size 950x900 mm 950x900 mm 950x900 mm 950x900 mm
Diesel Engine option Air-cooled Diesel Engine 186FS (10HP)

Air-cooled Diesel Engine 186FS (10HP)

Water-cooled CHANGWU Diesel Engine S1100 (16HP)

Water-cooled CHANGCHAI Diesel Engine ZS1100 (16HP)

Air-cooled Diesel Engine 186FS (10HP)

Water-cooled CHANGWU Diesel Engine S1100 (16HP)

Water-cooled CHANGCHAI Diesel Engine ZS1100 (16HP)

Air-cooled Diesel Engine 186FS (10HP)

Water-cooled CHANGWU Diesel Engine S1100 (16HP)

Water-cooled CHANGCHAI Diesel Engine ZS1100 (16HP)

Transmission Way By Chain By Chain By Chain By Chain
Rated lifting Height / / / 12 m (with Ladder) 24 m (without Ladder)
Tyre Number 2x (6.50-16) 2x (6.50-16) 4x (6.50-16) 4x (6.50-16)
Total Weight 700 kg 1200 kg 1100 kg 1400 kg
Packing Size (LxWxH) 2080x1520x1980 mm 2200x1300x2250 mm 2300x1250x2000 mm 2200x1300x2250 mm
Picture CM500-DHT DM500-DW CM500-DH CM500-DL
