Tilting Drum Concrete Mixer

The Instruction of Tilting Drum Concrete Mixer

The Jointsen Heavy-Duty Diesel Concrete Mixer Series is designed for professional job-site performance, available in multiple drum capacities (350L, 400L, 500L,700L) and two chassis options—compact 2-wheel with a support leg or high-stability 4-wheel steerable towable chassis. Powered by reliable air-cooled diesel engines (6HP / 10HP/16HP), it allows you to choose the perfect batch capacity and mobility setup tailored to your specific project and terrain requirements.

The Main Characteristics of Tilting Drum Concrete Mixer

Dual Chassis Configurations (2-Wheel & 4-Wheel): Choose between the compact 2-wheel setup with a front ground stand for easy site relocation, or the heavy-duty 4-wheel steerable chassis with tow hitch for rough-terrain towing behind site vehicles.

Reliable Diesel Power Units: Driven by fuel-efficient 6HP or 10HP air-cooled diesel engines housed inside a fully protective steel cover to guard against dust, impact, and concrete splatter.

3mm Reinforced Steel Drum: Heavy-duty reinforced mixing drum with 3mm wall thickness and dual high-efficiency mixing blades delivers uniform blending for 1 to 1.5 cement bags (50kg/bag) per batch.

Controlled 360° Discharging: Large diameter operator handwheel integrated with a positive foot-pedal mechanical lock allows safe, precise batch tilting and clean pouring into barrows or pumps.

Site-Ready Pneumatic Tires: Equipped with durable 4.00-12 pneumatic tires to easily roll over gravel, mud, and uneven excavation grounds.

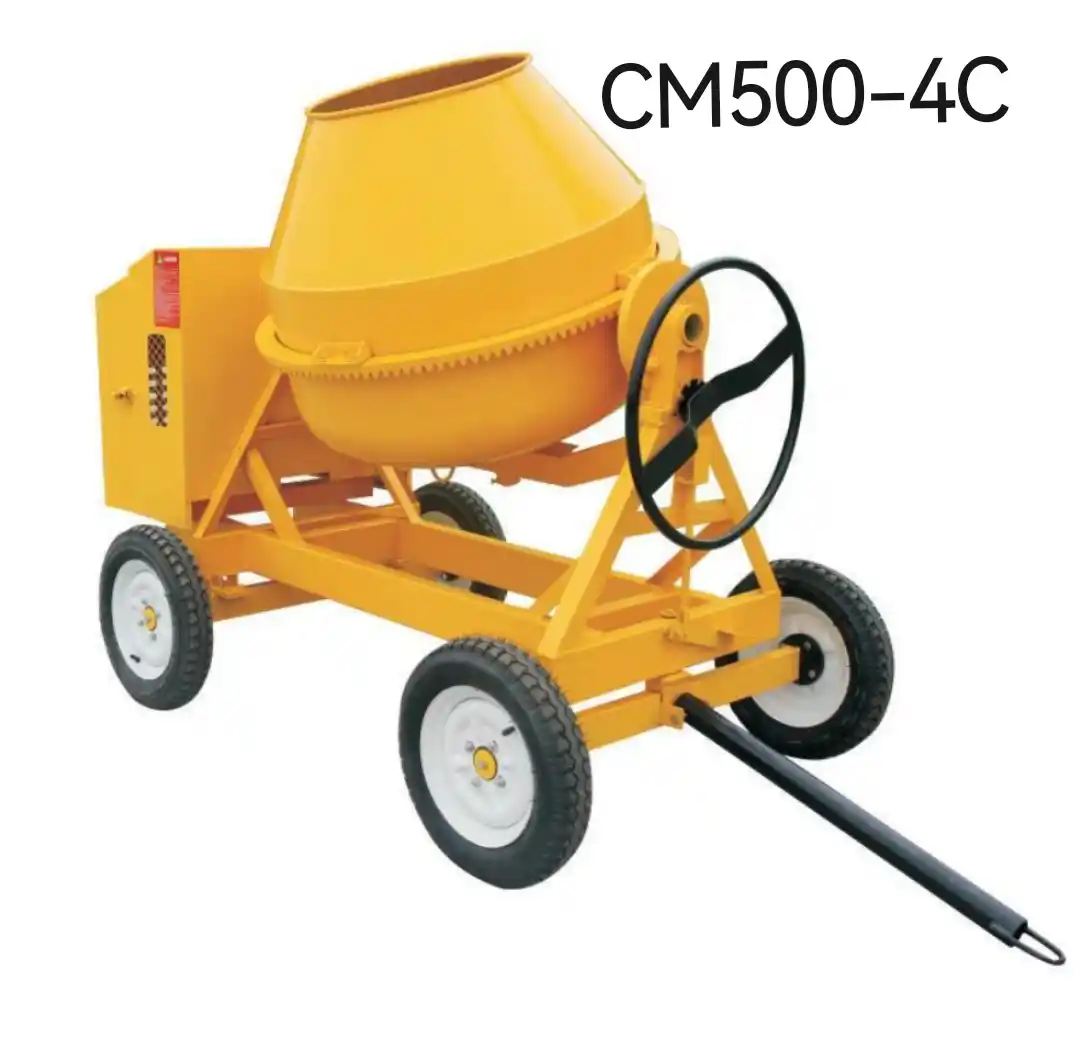

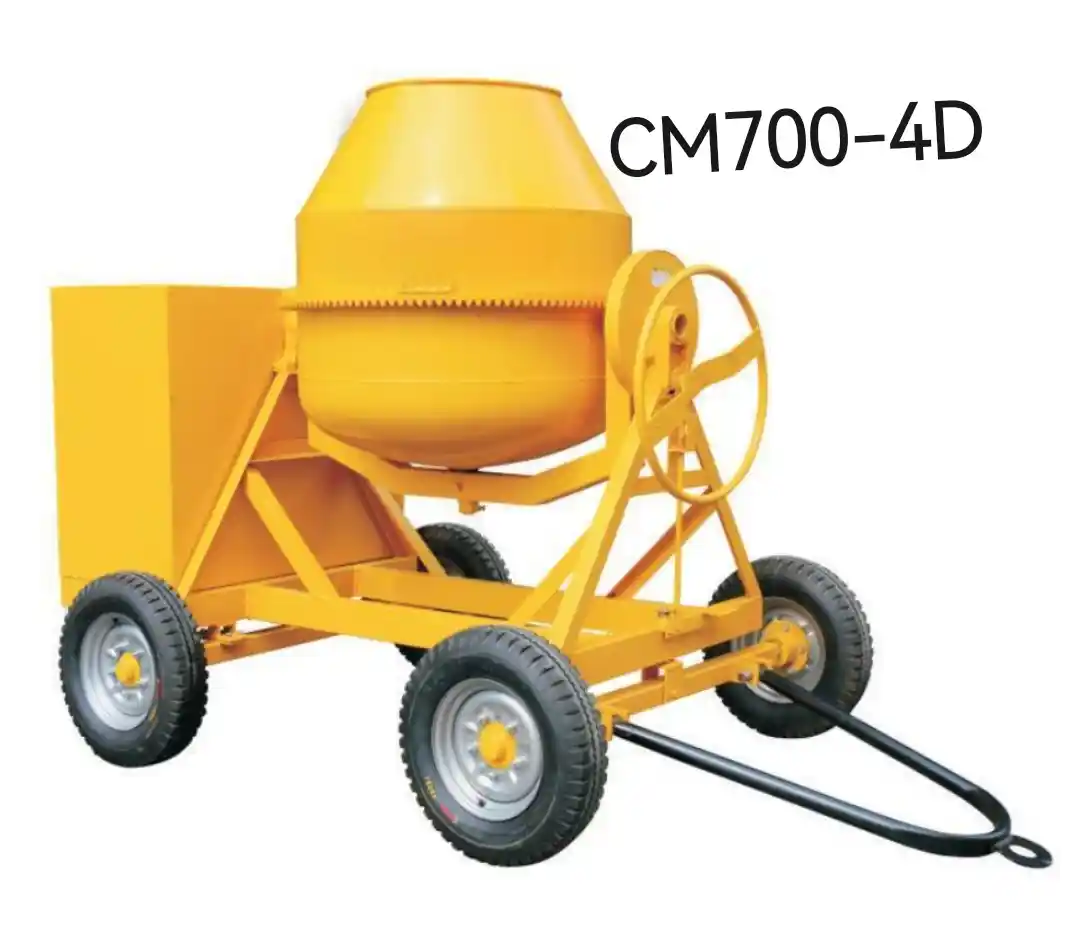

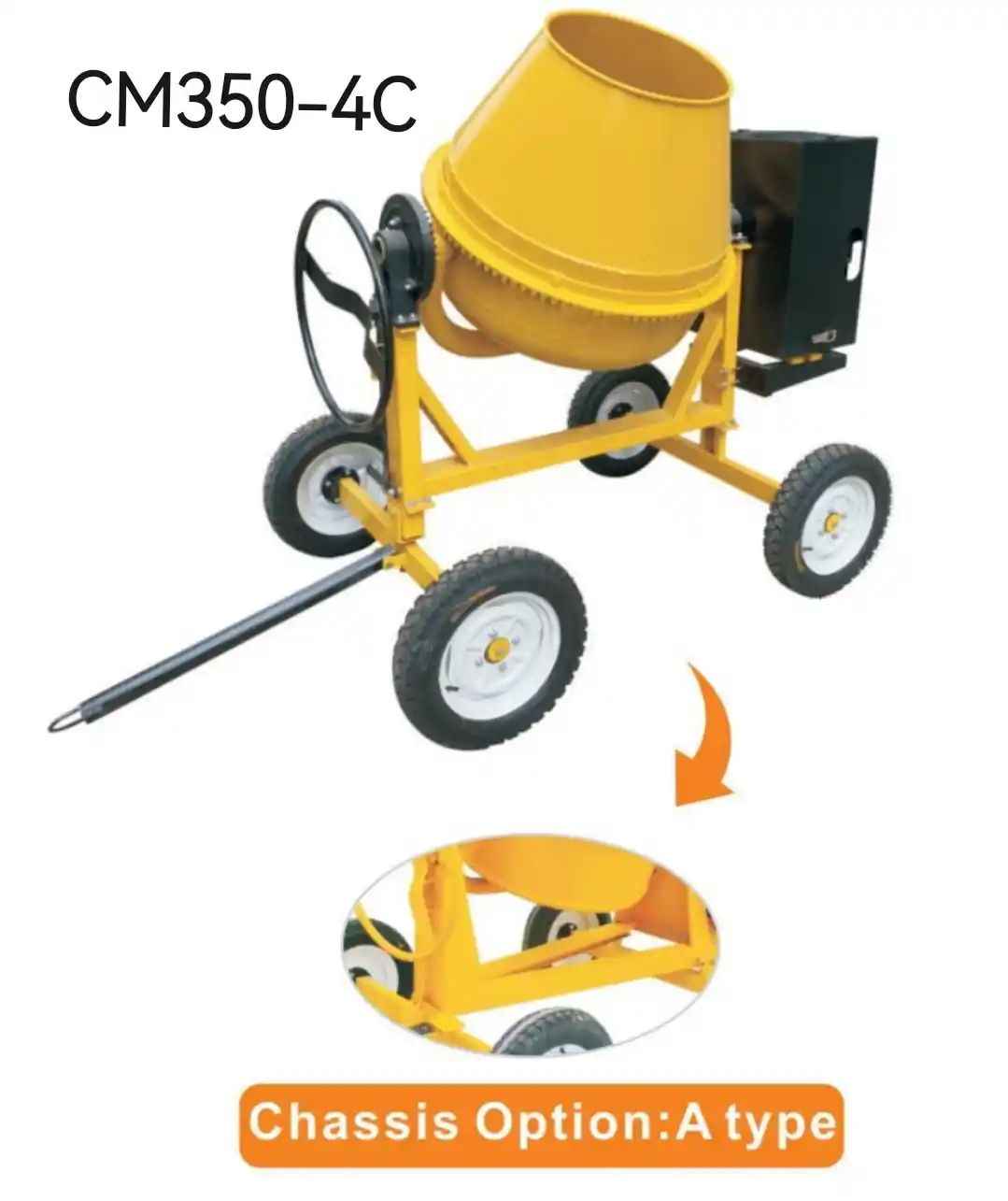

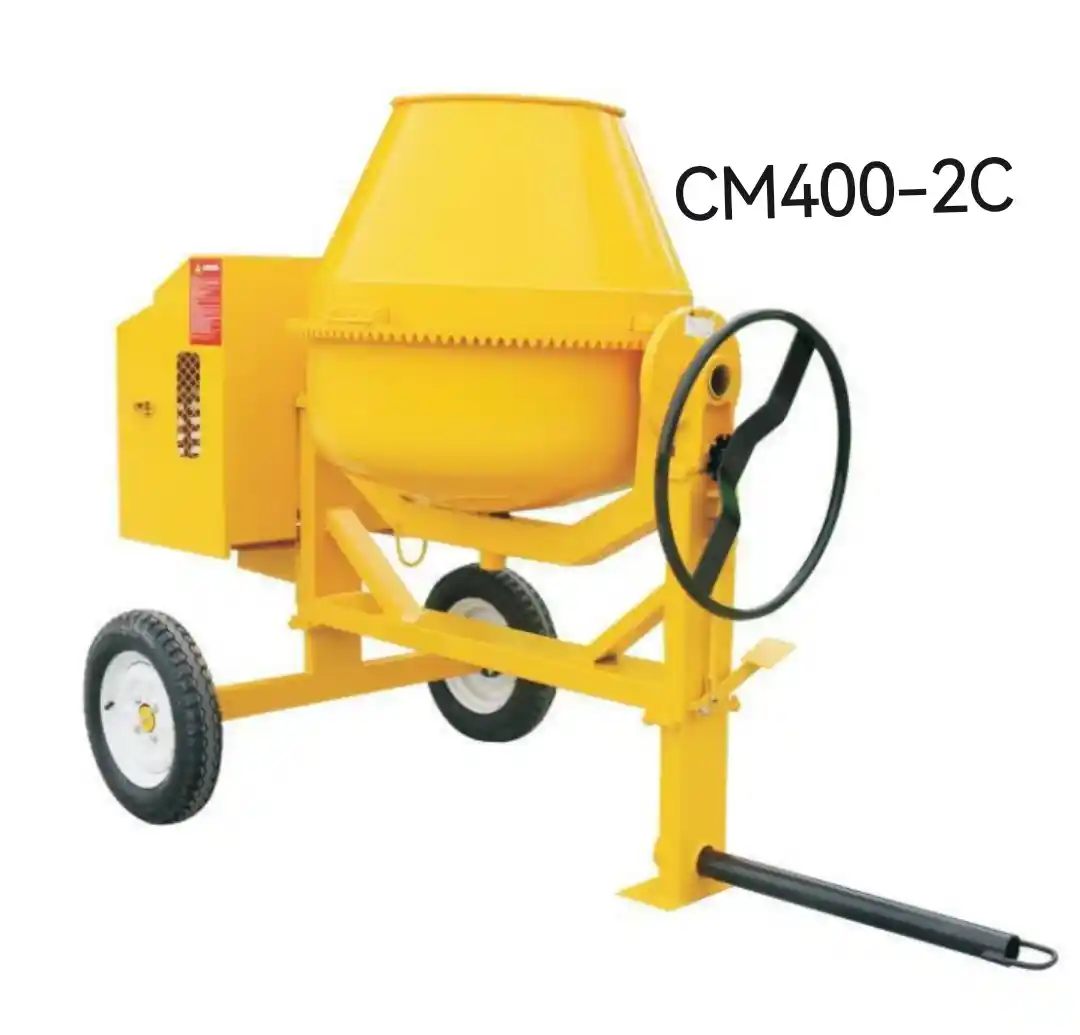

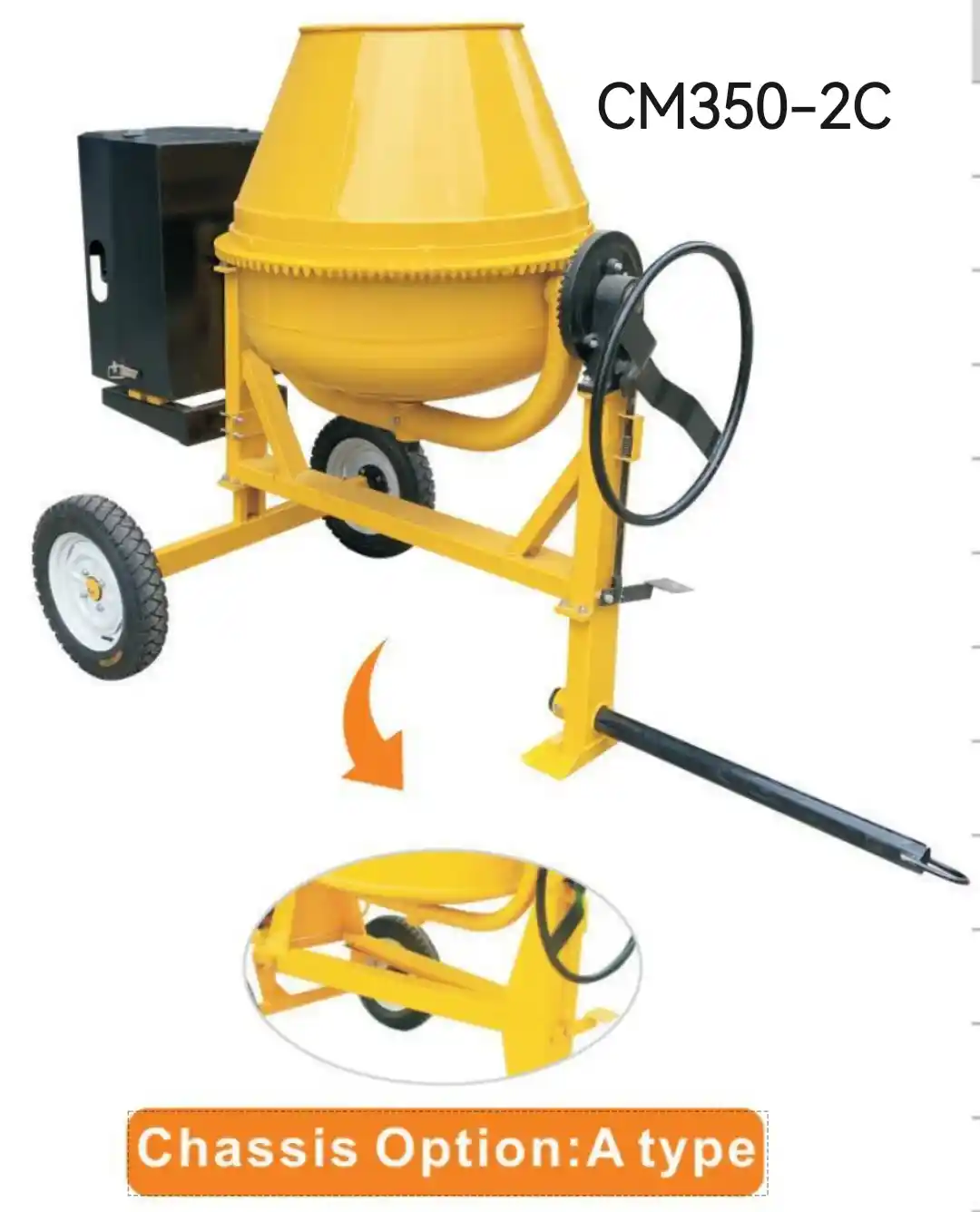

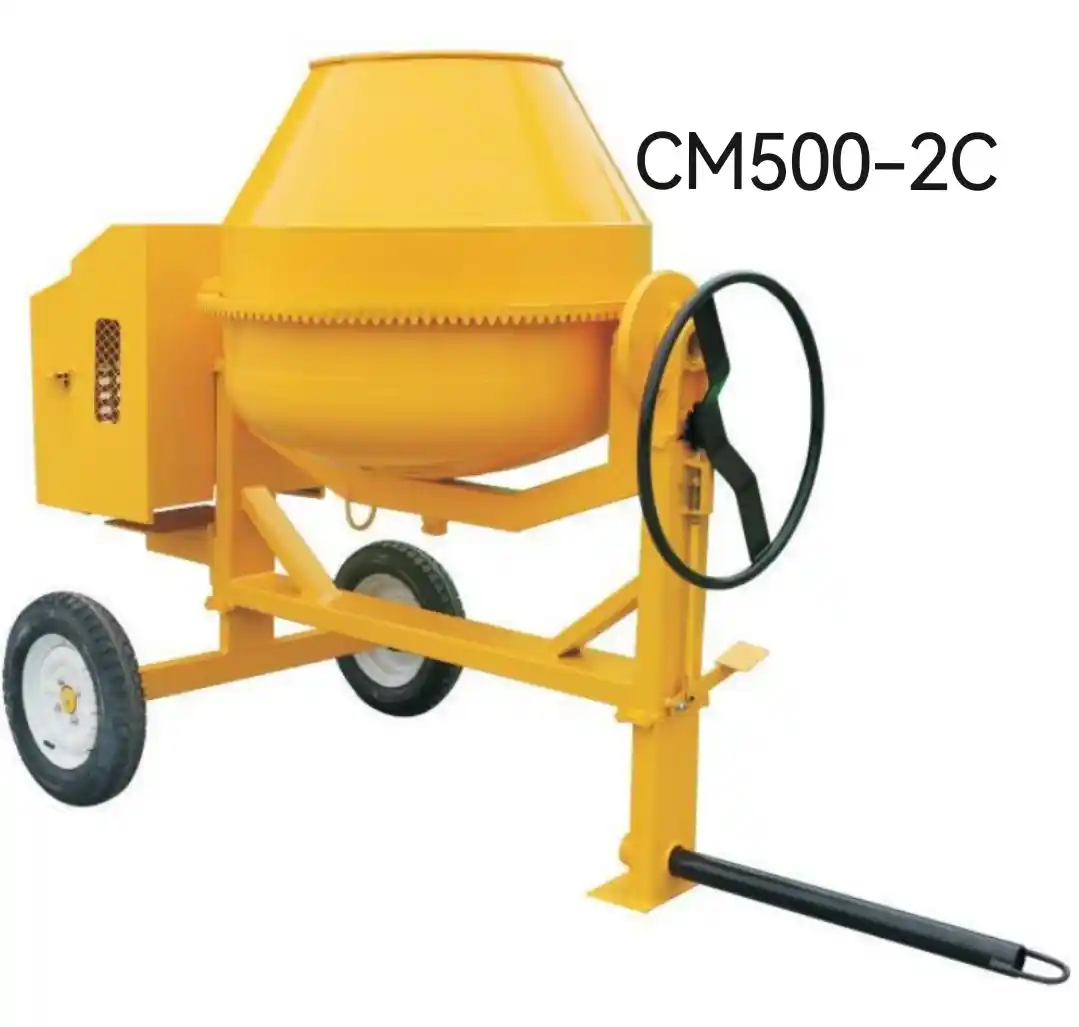

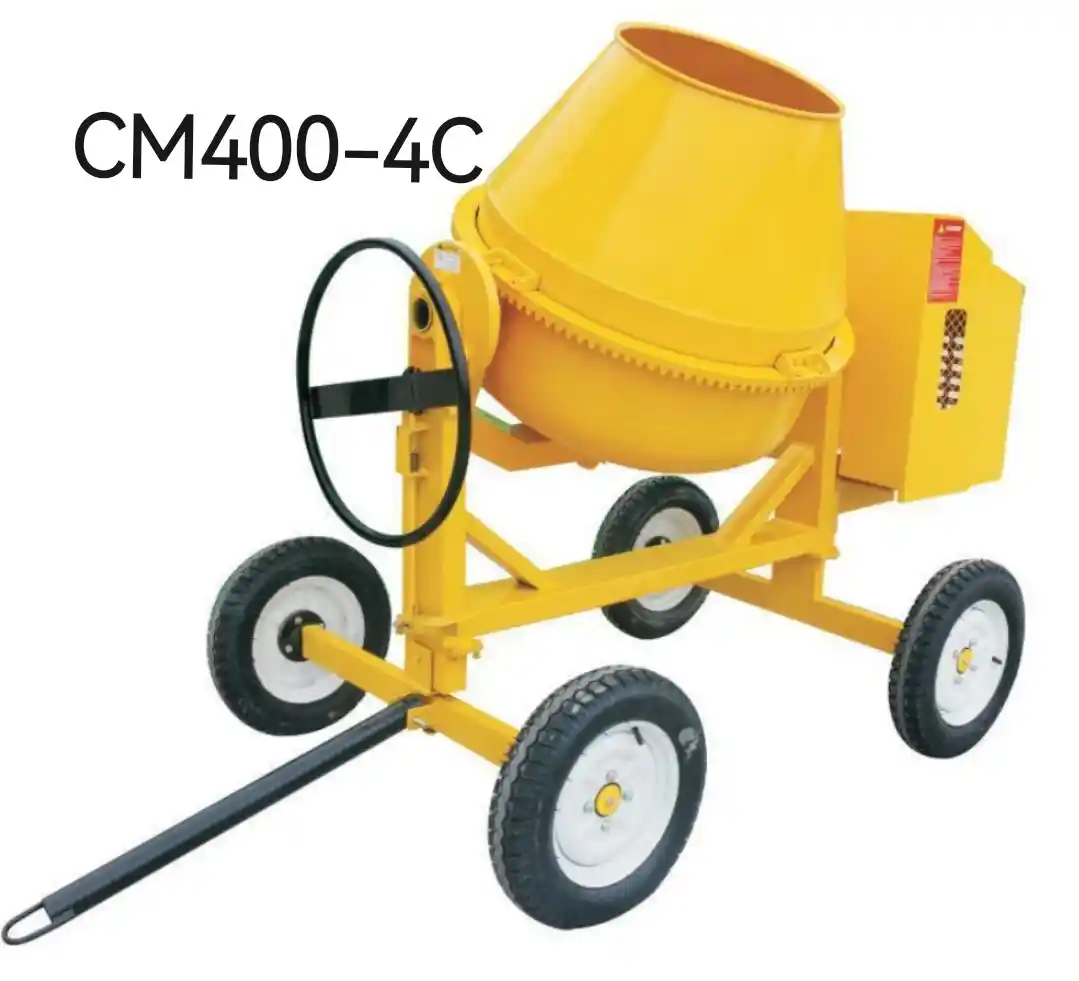

Model	CM350-2C	CM350-4C	CM400-2C	CM400-4C	CM500-2C	CM500-4D	CM700-4D
Drum Capacity	350L	350L	400L	400L	500L	500L	700L
Mixing Capacity	280L	280L	320L	320L	400L	400L	560L
Productivity	4-5 m³/h	4-5 m³/h	5-6 m³/h	5-6 m³/h	6-8 m³/h	6-8 m³/h	8-10 m³/h
Bags of Cement Per Batch	1 bag(50kg/bag)	1 bag(50kg/bag)	1 bag(50kg/bag)	1 bag(50kg/bag)	1.5 bag(50kg/bag)	1.5 bag(50kg/bag)	2bag(50kg/bag)
Drum Rotation Speed	25-30 RPM	25-30 RPM	25-30 RPM	25-30 RPM	25-30 RPM	25-30 RPM	25-30 RPM
Drum Thickness	3mm	3mm	3mm	3mm	3mm	3mm	3mm
Drum Size	800*900mm	800*900 mm	850*900 mm	850*900 mm	950*900mm	950*900 mm	950*1050mm
Tyre Size and Number	(4.00-12 )*2	(4.00-12 )*4	(4.00-12)*2	(4.00-12)*4	(4.00-12 )*2	(4.00-12)*4	(5.00-12)*4
Engine type option	Air-cooled Diesel Engine 6HP	Air-cooled Diesel Engine 6HP	Air-cooled Diesel Engine 6HP	Air-cooled Diesel Engine 6HP	Air-cooled Diesel Engine 10HP	Air-cooled Diesel Engine 10HP	Water-cooled DieselEngine 16HP,Electric Start
Total Weight	260kg	280kg	290kg	310kg	310kg	370kg	580kg
Overall Size(L*W*H)	1960*1100*1700 mm	1960*1100*1700 mm	2060*1200*1700 mm	2060*1200*1700 mm	2160*1200*1700 mm	2160*1200*1700 mm	2200*1500*1850 mm
